Lemur Sideview
Lemur Frontview
Lemur Wristband
Lemur Label

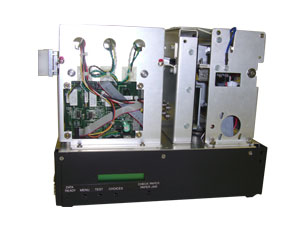

Lemur Cover Removed
Lemur Vertical Orientation
Lemur Vertical Orientation



Printers  >  Lemur


Lemur
High-Volume Printer

The Lemur is BOCA’s flagship, high-volume printer, supporting ticket, wristband or label printing. The media “live” outside the printer, and the Lemur can be oriented horizontally (desktop) or vertically (countertop mounting).

The Lemur comes standard with 200dpi or 300dpi resolution (600dpi premium option), and the printer can be produced with a range of optional features, including automatic cutter, LCD display, RFID, Ethernet, WiFi or Bluetooth.

Typical applications
  • Ticketing
  • Batch/Advance Printing
  • Transportation
  • Healthcare
  • Hospitality
  • Manufacturing

General
Print Method: direct thermal
Print Speed: 10” per sec. maximum
Resolution: 203 dpi (8 dots/mm); 300 dpi
(12 dots/mm); 600 dpi (premium upgrade)
Size: 7.7 H x 7.3 W x 8.5 L
Weight: 6 pounds


Media Transport
Media Type: roll or fanfold
Ticket Thickness: .004” to .011”
Ticket Width: 2.0” to 3.25”
premium options: 1” to 2” or 2” to 4”
Positioning: optical detector senses black mark
Ticket Separation: Manual tear-off or optional cutter with hopper (horizontal) or top plate (vertical)


Interfaces
Standard: Serial and USB
Optional: Ethernet, Bluetooth & Wi-Fi


Protocols
Standard: FGL
Drivers: Windows, Mac and Linux


Approvals
UL / FCC / CE / CCC

RFID (optional)
ISO14443, ISO15693, UHF
Others available upon request

* Print speed may be affected at extreme tempuratures


Power Requirements
100-240 VAC, 50/60 Hz, 80W max
24 V DC, 100W max


Environmental
Operating Temperature: -20 to 60ºC
Relative Humidity: 10% to 90%
Storage Temperature: -40 to 70ºC above specs without condensation


Bar Codes
Most 1D and 2D codes including PDF417 DataMatrix, QR, Aztec

Full speed printing of picket fence and ladder bar codes


Fonts
Resident fonts: 16 bitmapped fonts (including Cyrillic and German characters) and Asian character sets (optional)

Downloadable fonts: HP Soft font / TrueTypes fonts
Downloadable RAM: up to 27MB
Downloadable Flash: up to 28MB (optional)


Graphics
FGL format, PCX format (1bit b/w),
BMP format (1bit b/w)


Web Interface (ethernet only)
Real-time status monitor
Email notification


Projected Life
Cutter: 1 million cuts
Print Head: 150 km of paper
or 100 million dot activations
Bonus: Free print head replacements when exclusively using Boca paper


Warranty
Printer: 1 year, parts and labor
Print head: 90 days

Patents: BOCA has a patented head protection system that prevents premature head failure



Additional Options

  • Vertical orientation (includes top plate) - available top plates
  • Roll holder
  • Input hopper (wristband or ticket)
  • Cash drawer port (RJ12 connector)



Resources



RFID information
The Lemur can be produced with RFID encoding capabilities. The printer can encode on RFID media, in addition to the printer's normal printing capabilities. BOCA supports a range of RFID chips, including Mifare, UHF and I-Code tags.
