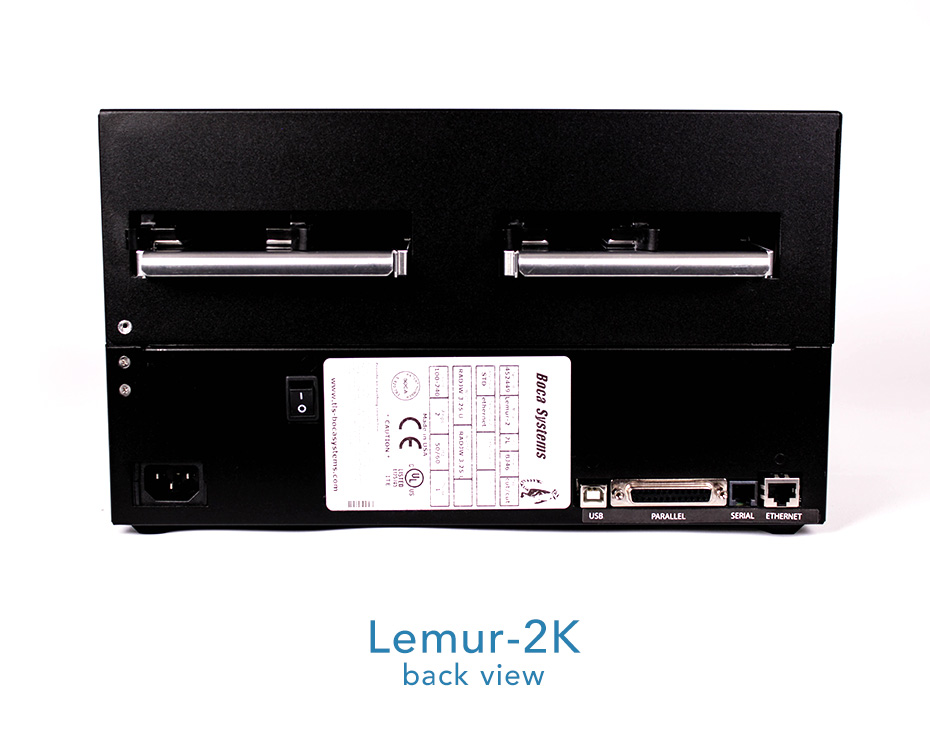

Lemur-2K back view





Printers  >  Lemur-2K


Lemur-2K
Dual-Path Kiosk Printer

BOCA’s dual-path kiosk printer can be configured at the factory to accommodate a ticket, receipt, label or wristband on each of its two paths, providing customers with the convenience of printing two different media options at a single point of sale.

Popular uses for Path 1 and Path 2 include the following (two may be chosen):

  • Ticket
  • Receipt
  • Wristband
  • Label
  • Membership card
  • Gift card
  • RFID ticket, label or wristband

The Lemur-2K comes standard with 200dpi or 300dpi resolution (600dpi premium option), and the printer can be produced with a range of optional features, including automatic cutter (on Path 1 and/or Path 2), LCD display, RFID, Ethernet, WiFi or Bluetooth.

Typical applications
  • Kiosks
  • Self-service
  • Ticketing
  • Transportation
  • Healthcare
  • Hospitality

General
Print Method: direct thermal
Print Speed: 10” per sec. maximum
Resolution: 203 dpi (8 dots/mm); 300 dpi (12 dots/mm); 600 dpi (premium upgrade)
Size: 7.7 H x 12.9 W x 8.25 L
Weight: 14 pounds

Media Transport
Media Type: fanfolded tickets
Ticket Thickness: .004” to .011”
Receipt Thickness: .002” to .008”
Ticket Width: 2.0” to 3.25”
premium options: 1” to 2” or 2” to 4”
Receipt Width: 3.125”
Positioning: optical detector senses black mark (ticket) or paper (receipt)
Ticket Separation: cutter

Interfaces
Standard: Serial and USB
Optional: Ethernet, Bluetooth & Wi-Fi

Protocols
Standard: FGL
Drivers: Windows, Mac and Linux

Approvals
UL / FCC / CE / CCC

RFID (optional)
ISO14443, ISO15693, UHF
Others available upon request

* Print speed may be affected at extreme tempuratures

Power Requirements
100-240 VAC, 50/60 Hz, 80W max
max 24 V DC, 100W max

Environmental
*Operating Temperature: -20 to 60ºC
Relative Humidity: 10% to 90%
Storage Temperature: -40 to 70ºC above specs without condensation

Bar Codes
Most 1D and 2D codes including PDF417 DataMatrix, QR, Aztec

Full speed printing of picket fence and ladder bar codes

Fonts
Resident fonts: 16 bitmapped fonts (including Cyrillic and German characters) and Asian character sets (optional)
Downloadable fonts: HP Soft font / TrueType fonts
Downloadable RAM: up to 27MB
Downloadable Flash: up to 28MB (optional)

Graphics
FGL format, PCX format (1bit b/w),
BMP format (1bit b/w)

Web Interface (ethernet only)
Real-time status monitor
Email notification

Projected Life
Cutter: 1 million cuts
Print Head:  150 km of paper or 100 million dot activations (ticket) / 50 million (paper)
Bonus: Free print head replacements when exclusively using Boca paper

Warranty
Printer: 1 year, parts and labor
Print head: 90 days

Patents: BOCA has a patented head protection system that prevents premature head failure

Additional Options

  • Roll holder
  • Input hopper (wristband or ticket)
  • Cash drawer interface



RFID information
The Lemur-2K can be produced with RFID encoding capabilities on either or both paths. The printer can encode on RFID media, in addition to the printer's normal printing capabilities. BOCA supports a range of RFID chips, including Mifare, UHF and I-Code tags.
