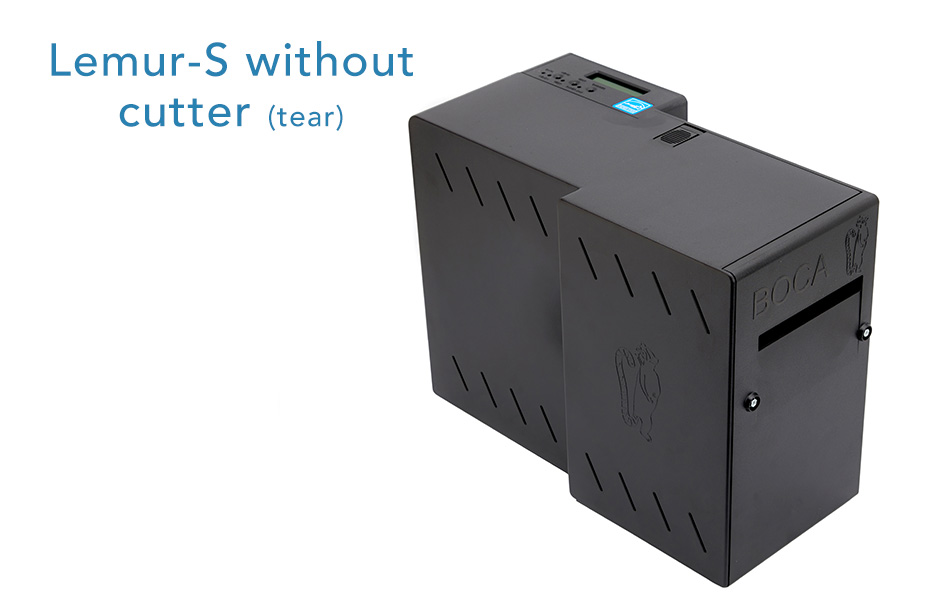

Lemur-S Without Cutter
Lemur-S Label
Lemur-S Ticket



Printers  >  Lemur-S


Lemur-S
High-Volume Printer with Storage Cabinet

The Lemur-S is BOCA’s flagship, high-volume printer, supporting ticket, wristband or label printing. The media “live” inside the printer’s storage cabinet.

The Lemur-S comes standard with 200dpi or 300dpi resolution (600dpi premium option), and the printer can be produced with a range of optional features, including automatic cutter, LCD display, RFID, Ethernet, WiFi or Bluetooth.

Typical applications
  • Ticketing
  • Batch/Advance Printing
  • Transportation
  • Healthcare
  • Hospitality
  • Manufacturing

General
Print Method: direct thermal
Print Speed: 10” per sec. maximum
Resolution: 203 dpi (8 dots/mm); 300 dpi
(12 dots/mm); 600 dpi (premium upgrade)
Size: 11.3 H x 9.0 W x 15.0 L
Weight: 7.2 pounds


Media Transport
Media Type: fanfolded tickets
Ticket Thickness: .004” to .011”
Ticket Width: 2.0” to 3.25”
premium options: 1” to 2” or 2” to 4”
Positioning: optical detector senses black mark
Ticket Separation: Manual tear-off or optional cutter with hopper


Interfaces
Standard: Serial, Parallel and USB
Optional: Ethernet, Bluetooth & Wi-Fi


Protocols
Standard: FGL
Drivers: Windows, Mac and Linux


Approvals
UL / FCC / CE / CCC

RFID (optional)
ISO14443, ISO15693, UHF
Others available upon request

* Print speed may be affected at extreme tempuratures


Power Requirements
100-240 VAC, 50/60 Hz, 80W max
24 V DC, 100W max


Environmental
Operating Temperature: -20 to 60ºC
Relative Humidity: 10% to 90%
Storage Temperature: -40 to 70ºC above specs without condensation


Bar Codes
Most 1D and 2D codes including PDF417 DataMatrix, QR, Aztec

Full speed printing of picket fence and ladder bar codes


Fonts
Resident fonts: 16 bitmapped fonts (including Cyrillic and German characters) and Asian character sets (optional)

Downloadable fonts: HP Soft font / TrueTypes fonts
Downloadable RAM: up to 27MB
Downloadable Flash: up to 28MB (optional)


Graphics
FGL format, PCX format (1bit b/w),
BMP format (1bit b/w)


Web Interface (ethernet only)
Real-time status monitor
Email notification


Projected Life
Cutter: 1 million cuts
Print Head: 150 km of paper
or 100 million dot activations
Bonus: Free print head replacements when exclusively using Boca paper


Warranty
Printer: 1 year, parts and labor
Print head: 90 days

Patents: BOCA has a patented head protection system that prevents premature head failure



Additional Options

  • Cash drawer port (RJ12 connector)



Resources



RFID information
The Lemur-S can be produced with RFID encoding capabilities. The printer can encode on RFID media, in addition to the printer's normal printing capabilities. BOCA supports a range of RFID chips, including Mifare, UHF and I-Code tags.
